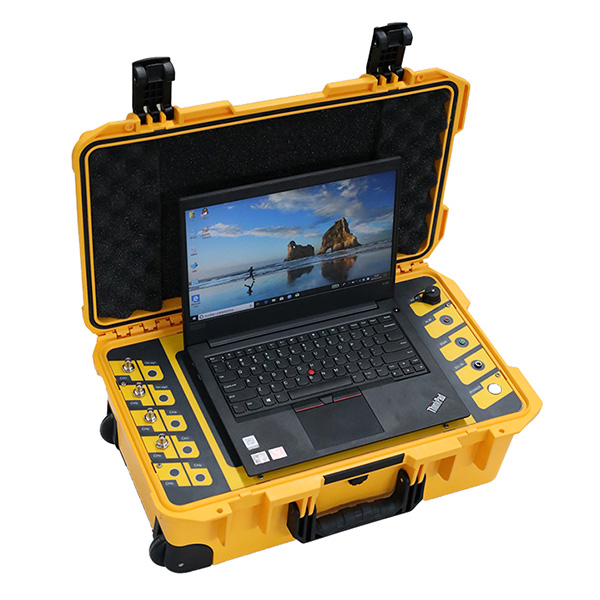

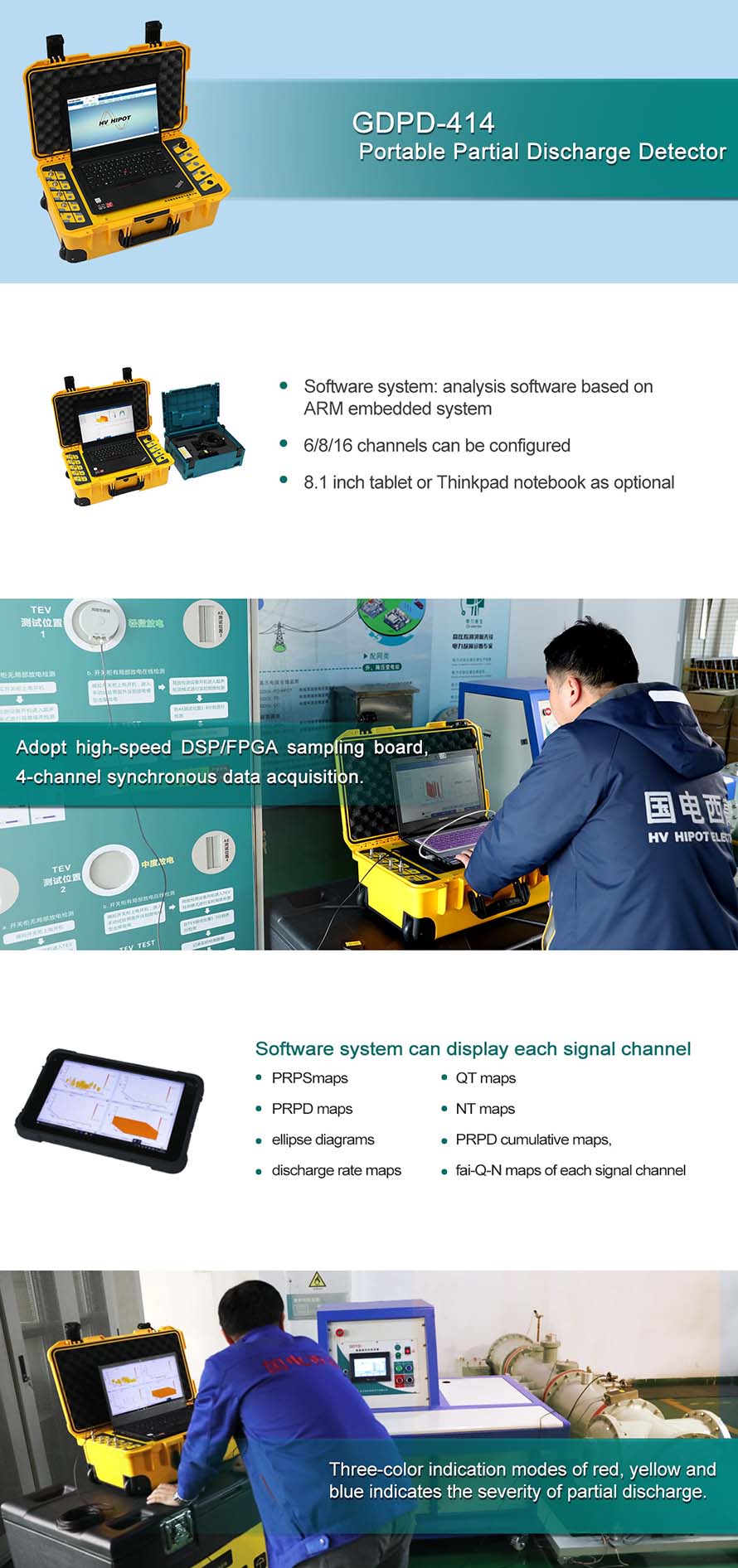

GDPD-414 Portable Partial Discharge Detector
Main
unit

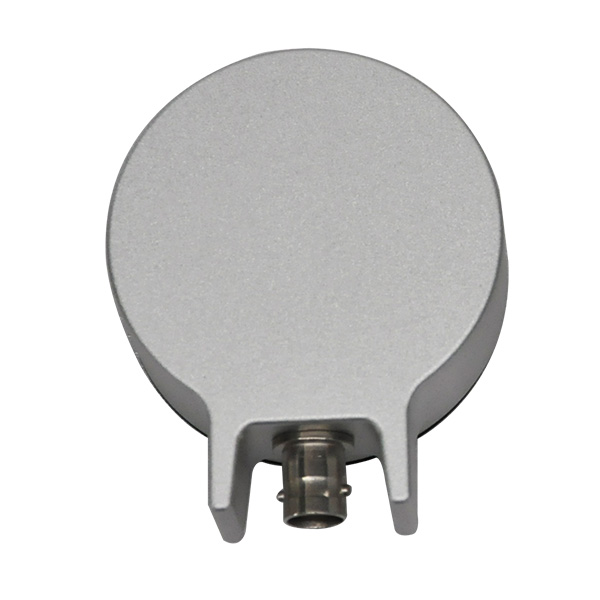

UHF sensor,
round type,?suitable for GIS

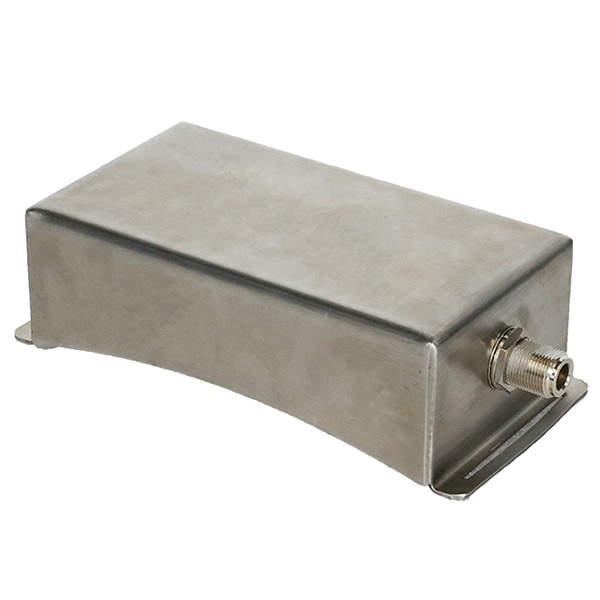

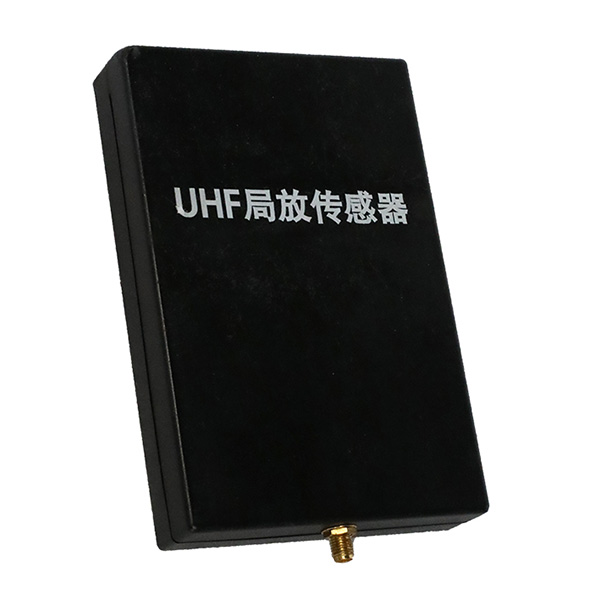

UHF sensor, rectangle type, suitable for power cable, transformer, switchgear

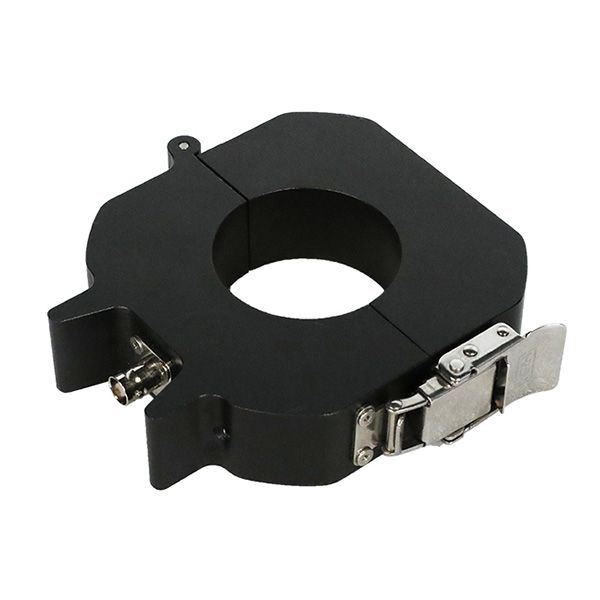

HFCT, suitable for power cable, transformer
TEV sensor,
suitable for switchgear

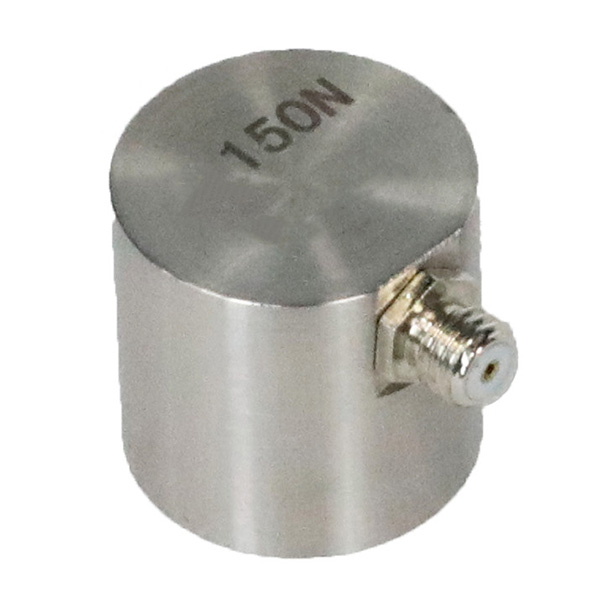

Ultrasonic sensor, suitable for transformers, switchgear
Above pictures are only for reference first.

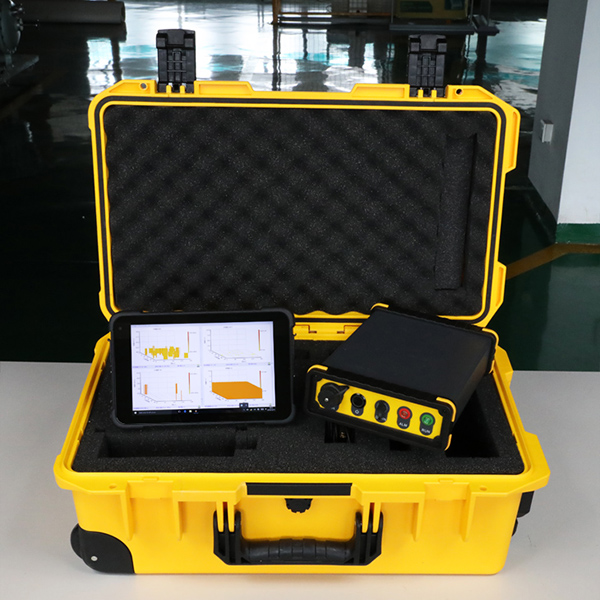

The GDPD-414 Portable (GDPD-414H handheld) Partial Discharge Detector adopts smart quick intelligent power test system (Soft No. 1010215, trademark registration number 14684781 (14684481)). It can flexibly configure various sensors according to different products to be tested. TEV, ultrasonic and HFCT are suitable for partial discharge detection of high-voltage switchgear and ring network cabinet; Ultrasonic and UHF are suitable for detecting GIS; Ultrasonic and HFCT are suitable for testing power cable. The built-in expert diagnosis system can analyze the test data and judge the discharge energy and possible parts. It is widely used in electric power and railway.

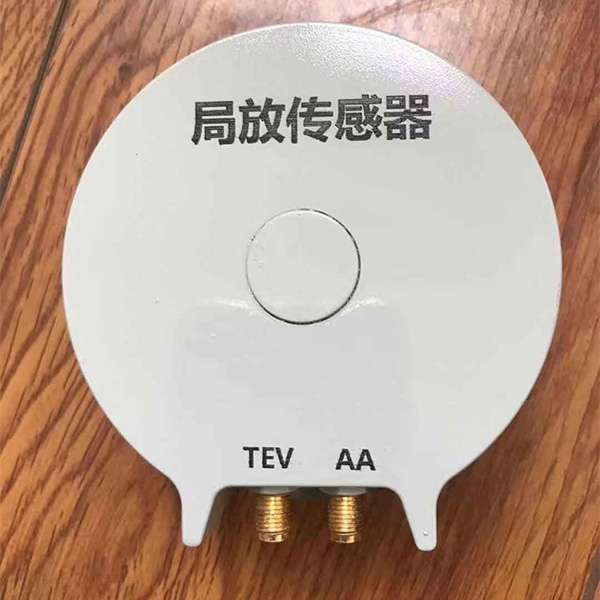

Ultrasonic and TEV sensor (2-in-1)
●?Adopt high-speed?DSP/FPGA?sampling board, 4-channel synchronous data acquisition.
●?Software system: analysis software based on ARM embedded system
●?6/8/16 channels can be configured
●?8.1 inch tablet or Thinkpad notebook as optional
● 6/8/16 channels can be configured according to customer’s different demands.?
●?Can display the PRPS and PRPD maps, ellipse diagrams, discharge rate maps, QT maps, NT maps, PRPD cumulative maps, fai-Q-N maps of each signal channel.
●?Three-color indication modes of red, yellow and blue indicates the severity of partial discharge.
Customer can choose sensors according to different tested?objects:
|
Sensors |
TEV/AE/HFCT |
AE/UHF |
AE/HFCT |
|
? Tested Objects |
HV Swichgear and Ring network cabinet |
? GIS |
? Cable |
| PD signal acquisition host | |
| CPU Working frequency | 1.2GHz /?800MHz |
| Operating system | Linx embedded operating system |
| Wired network port | LAN network port |
| Wireless network port | Built-in wireless WiFi (optional) |
| System running memory | 1G / 512M |
| System storage memory | 512M /?256M |
| Data acquisition frequency | 250MHz /?80MHz |
| Ultrasonic detection channel | |
| Measurement range | 0-60mV |
| Frequency detection range | 20~200kHz |
| UHF detection channel | |
| Detection frequency | 300~1800MHz /?300~1500MHz |
| Measurement range | -80~10dBm |
| Error | ±1dBm |
| Resolution | 1dBm |
| HFCT detection channel | |
| Frequency range | 0.5~100MHz |
| Error | ±1dB |
| Dynamic Range | 60dB |
| Measurement range | 0-100mV |
| Accuracy | 1dB |
| TEV detection channel | |
| Frequency range | 3~100MHz |
| Error | ±1dB/mV |
| Sensitivity | 0.01mV |
| Measurement range | 0-60dB/mV |
| Resolution | 1dBm/mV |
| Battery | |
| Built-in battery | Lithium battery, 12V, 4400mAh /?Lithium battery, 12V, 2000mAh |
| Use time | about 8 hours /?about 6 hours |
| Charging time | About 2 hours |
| Battery protection | Over-voltage and over-current protection |
| Battery charging | |
| Rated voltage | 12.6V |
| Charging output current | 2A |
| Operating temperature | -20℃-60℃ |
| Operating humidity | <80% |
| GDPD-414H Handheld display terminal (industrial grade) | |
| CPU | Intel Quad Core Atom Z3735F |
| GPU | Intel HD Graphic (Gen7) |
| Flash | 32GB |
| RAM | 2GB |
| Operating system | Windows10 |
| Display | 8.1 inch 1280×800 IPS screen |
| Network interface | Wifi and Bluetooth |
| Battery | 3.7V 8500mAH polymer lithium ion battery |
| Thinkpad Laptop or Tablet PC | |
| Size | |
| Accessory case size /?PD acquisition host size | 395mm*295mm*105mm /?240mm*165mm*55mm |
| PD host weight | 3kg /?0.65kg |
| PD hose case size /?Display tablet terminal size | 570mm*360mm*240mm /?395mm*295mm*105mm |
| Display tablet terminal weight | 0.85kg |
| Overall box size | 570mm*360mm*240mm |
| Working environment | |
| Working temperature | -20℃~50℃ |
| Environment humidity | 0~90%RH |
| IP level | 54 |

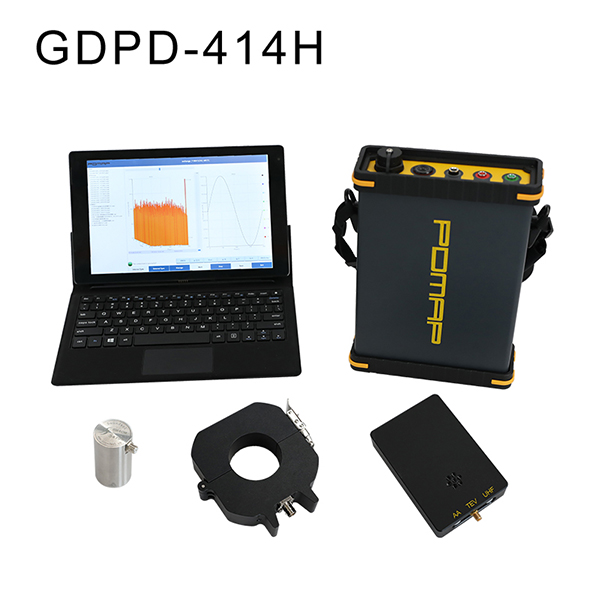

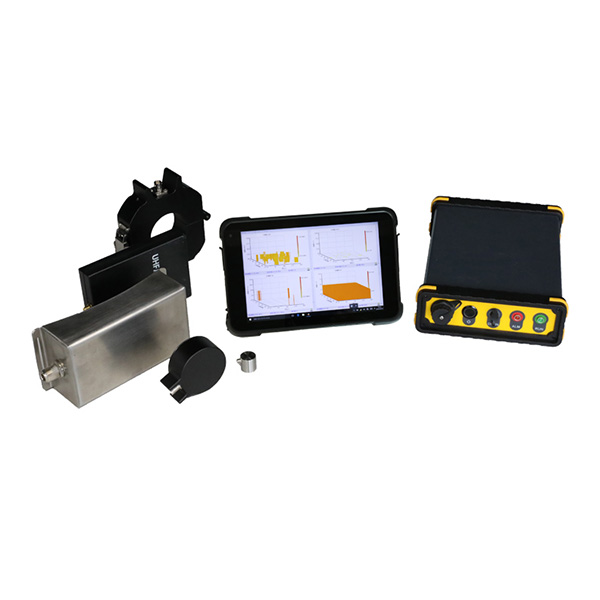

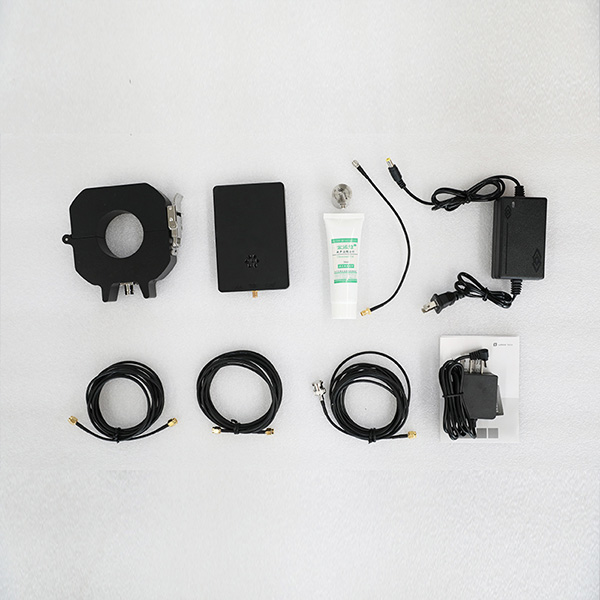

GDPD-414H Handheld Partial Discharge Detector
