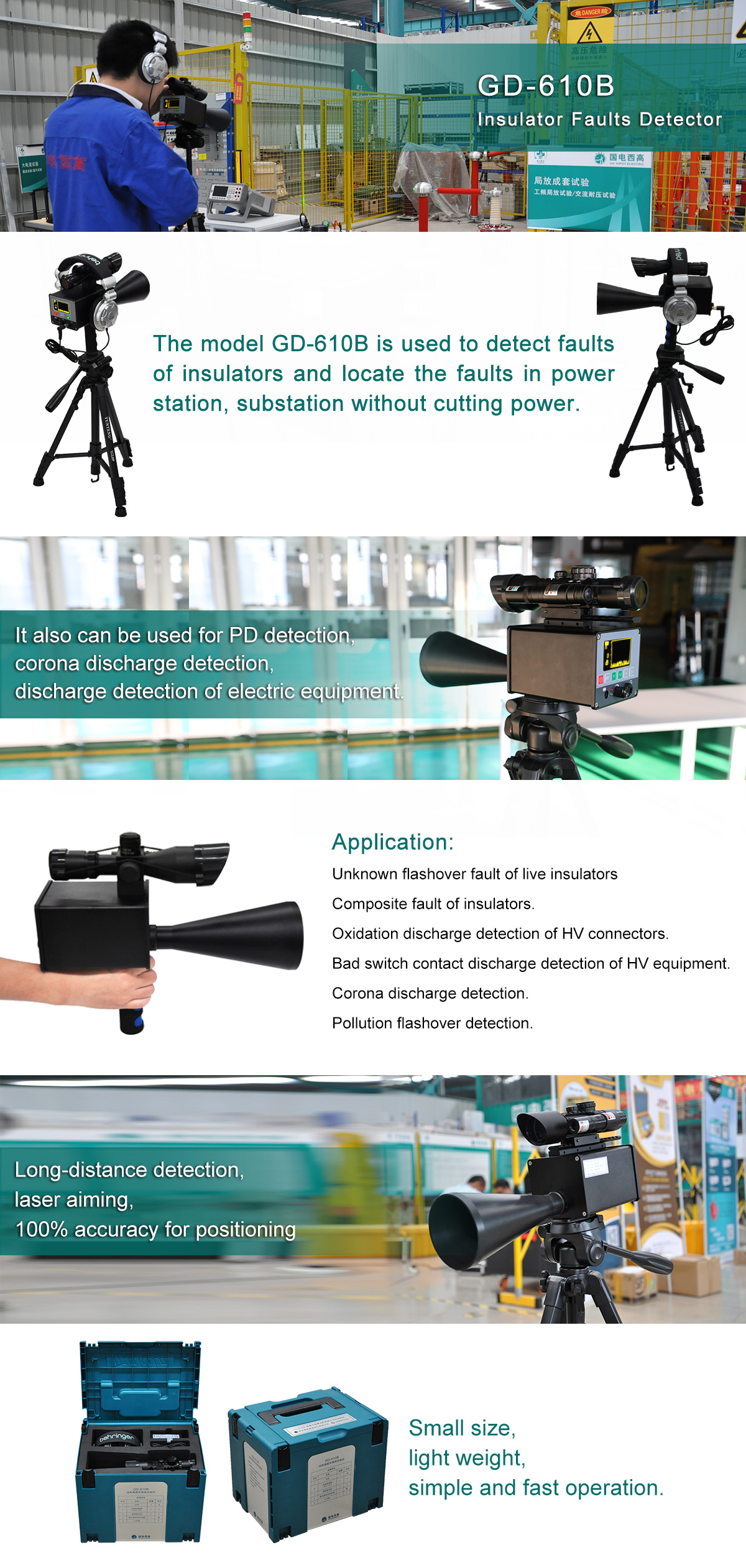

GD-610B Insulator Faults Detector
● Small size, light weight, novel and beautiful structure, full function, simple and fast operation, safe and reliable.
● For low or zero value insulators can automatically alarm. It is able to detect the insulator with leakage, but has not yet broken down at critical damage.
● Long-distance detection, laser aiming, accurate positioning of the deteriorated insulator and the specific location of its equipment failure, the accuracy rate is 100%.
● Dual indication of stereo headphone and LCD display, the effect is obvious.
● Strong anti-interference ability.
● High degree of intelligence:
● With data locking function.
● Under-voltage function(If low voltage, the instrument will shut off automatically).
● Constant current charging, auto stops by itself after full charge.
● Lithium-ion battery with 1000 charging times, equipped with intelligent charging system to extend battery life.
Use range: 6kV~500kV
| Host | Center frequency | 40KHz±2Hz |
| Sensitivity | Discharge mode: pinpoint arc discharge Discharge interval: 4mm |
|
| Voltage: AC 10kV ????????distance 18M AC 35kV ????????distance 25M AC 110kV ???????distance 50M AC 220-500kV ???distance 50M |
||
| Operating voltage | 7.4V (lithium-ion batteries*2pcs) | |
| Dimension | 250*125*140mm | |
| Aluminum?alloy?bracket ? |
Laser | Output wave length: 650nm Beam divergence: 0.4mard Output power: ≤?50mw Dimension: 16*0mm |
| High frequency sensor | Center frequency (fo): 40kHz±2Hz Center capacitance (Co): 2500±20%pF Working temperature: -20-60℃ Weight: 2.17kg |
|
| Headphone ? |
Rated impedance (Z) | 125? |
| Frequency range | 100Hz-10KHz | |
| Sensitivity | (1W/1m) 60dB | |
| Charger | Input voltage | AC 220V±10% |
| Input frequency | 50Hz±5% | |
| Output DC voltage | DC 8.4V | |
| Current | 5A | |
| Packing dimension of whole set: 470*340*420mm | ||
| Working temperature: -30-60℃; Humidity: (0~100)%RH | ||
| Complete packing weight: 7.18kg | ||
| GD-610B detector | 1 set |
| Power adapter | 1 piece |
| High reduce noise headphone | 1 piece |
| Laser battery charger | 1 piece |
| Handle | 1 piece |
| Engineering plastic packing box | 1 copy |
| User’s manual | 1 copy |
| QC pass certificate | 1 copy |
| Packing list | 1 copy |
| Factory test report | 1 copy |
