GD-3134E Cable Testers & Cable Identifier
GD-3134E is a high-performance underground metal pipeline detection system composed of signal transmitters and receivers. It can be used for path detection, pipeline survey and depth measurement of metal pipelines and underground cables. It can carry out uniqueness identification with a variety of selected accessories, as well as pipe insulation damage and the search for some types of cable faults.
● Compass display: intuitively displays the pipeline location and left & right directions.
● Tracking true and false prompts: current direction measurement, tracking correct error prompts, eliminating line interference (some frequencies).
● Depth and current measurements, can display the signal strength historical curve.
● Fully digital high-precision sampling processing: stable and reliable, ultra-high sensitivity, narrow receiving passband, strong anti-interference ability, can fully suppress the power frequency and harmonic interference of adjacent running cables and pipelines.
● Running cable detection: high-performance transmission clamps, maximum coupling output signal to the running cable.
● Cable/pipeline identification: Flexible clamps (optional) are easy to use and clearly give identification results; stethoscopes (optional) can be used when it is not convenient to use clamps.
● Ground fault finding: HV booster (optional) boosts the maximum output voltage to 1000V, uses the A frame (optional) to locate the ground insulation breakage points of the pipeline, no need to adjust zero. The arrow indicates the direction of the fault point.
● Multiple detection frequencies: active detection and passive detection.
● A variety of signal output of the transmitter: direct connection output, clamp coupling output, radiation induction.
● High power output of transmitter, multiple output adjustable, automatic impedance matching and protection.
● Built-in large capacity lithium ion battery group, it will automatic shutdown undervoltage or long time no operation,
● Rugged case, light and portable.
Transmitter
● Output modes: direct connection output, radiation induction, clamp coupling output(optional), fault locating HV booster(optional).
● Output frequency: 640Hz (compound frequency), 1280Hz (compound frequency), 10kHz, 33kHz, 82kHz, 197kHz.
● Output power: Max.10W, 10 gears adjustable, automatic impedance matching.
● Direct connection output voltage: maximum 150Vpp.
● Overload and short circuit protection.
● Man-machine interface: 320 x240 dot matrix LCD display.
● Built-in battery: 4 section 18650 lithium ion battery, nominal 7.4V, 6.8Ah.
Receiver
● Input mode: Built-in receiving coil, flexible clamp-on CTs(optional), Stethoscope(optional), A type fault detection device(optional).
● Receiving frequency:
Active detection frequency for Pipes: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz.
Power frequency passive detection frequency: 50Hz/60Hz and 250Hz/300Hz (user configurable).
RF passive detection frequency: the center frequency is 10kHz, 33kHz, 83kHz respectively.
● Pipe detection mode: Wide peak method, narrow peak method, sound Valley method.
● Cable identification mode: flexible clamp-on CTs(optional) automatic identification and current measurement, stethoscope(optional) identification.
● 320*240 LCD display, shows signal amplitude, left/right direction, correct/false indication, history curve of signal strength, depth, current and result.
● Built-in battery, 2 section 18650 lithium ion battery, rated 7.4V, 3.4Ah.
Others
● Dimension: Transmitter 280*220*90mm. Receiver 680*270*120mm.
● Weight: Transmitter 2.2kg. Receiver 3.5kg.
● Charger: AC100-240V input, 50/60Hz, output DC 8.4V,2A/3A.
● Working condition: Temperature -10-40℃, Humidity 5-90% RH, altitude<4500m.
Transmitter
 |
 |
|

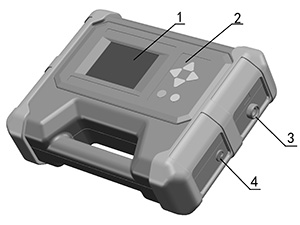

Transmitter overall |

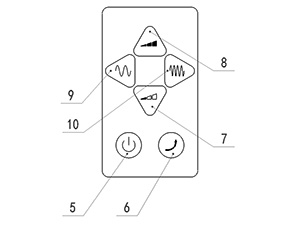

Transmitter keyboard |
|
1. LCD display 2. Keyboard 3. Output socket 4. Charging socket |
5. Power ON/OFF 6. Re-output key 7/8. Output power reduction/increase key 8/9. Frequency reduction/increase key |
Receiver
 |
|
|

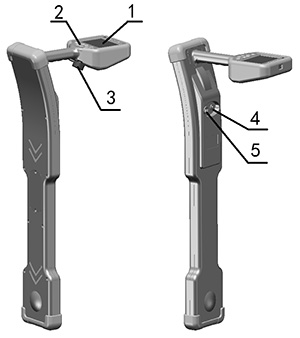

Receiver overall |

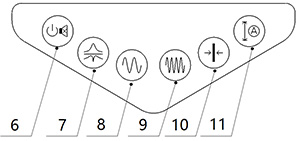

Receiver keyboard |
|
1. LCD display 2. Keyboard 3. Gain adjusting?knob 4. Charging socket 5. Accessory input socket |
6. Switch/Mute key 7. Mode key 8. Frequency reduction key 9. Frequency increase key 10. Calibration key 11. Measuring key |
Standard accessories
| No. | Name | Drawings and instructions | Qty. |
| 1 | Transmitter output connection cable |  |
1 |
| 2 | Grounding drill |  |
2 |
| 3 | Grounding extension line | 1 | |
| 4 | Charger | T?standard, transmitter and receiver must be charged separately | 2 |
Optional accessories (Specify when ordering, unspecified default unselected)
| No. | Name | Drawings and instructions | Remark |
| 1 | Connecting cable for receiver?accessories. |  Blue 6-core plug |
? |
| 2 | Connecting cable for transmitter accessories. | Red 5-core plug |
? |

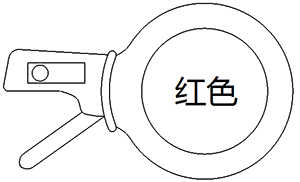

| 3 | Clamp-on CT for transmitter |  |
? |
| 4 | Flexible CT for receiver |  |
? |
| 5 | A?frame |  |
? |

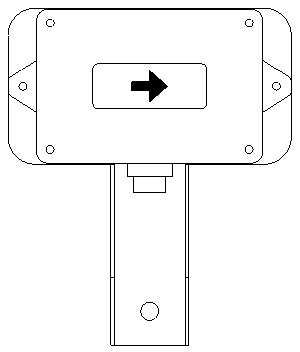

| 6 | Fault detection HV booster |  |
? |
| 7 | Miniature stethoscope |  |
? |
| 8 | Long stem stethoscope |  |
? |
| 9 | Detection rod for long stem stethoscope |  |
? |
